Price: $49.99
(as of Aug 18, 2022 10:37:11 UTC – Details)
Specifications:
Model: TX800/BT20
Chip: CSR8675 5.0
Range: Up to 300ft (without any blocking objects)
Power Type: TYPE-C HUB
Connect Type: APP / Hand
CSR’s latest ANC noise reduction and echo cancellation technology.
TX dual stream, RX multi-point connection SPDIF, I2S audio input / output interface, free to switch.
Supports SBC, MP3, AAC, apt-X HD, apt-X LOW LATENCY, apt-X audio format.
Support TWS (left and right channel separation)
Note:
1. It powered by the type-C hub, and using the mobile phone power adapter is the best choice, using the computer USB port maybe have white noise.
2. In the TX mode, when two devices are connected at the same time, one of the devices is disconnected, and then you want to connect again, At this situation, you need to double-click the “A/B” button, the device will connect again.
GENERAL USAGE:
Turn on the device
TX Mode: Using the AUX/RCA cable, one side insert to the ” AUX IN” port or the SPDIF cable insert to the “SPDIF IN” port, the other side insert to the NON-Bluetooth device(MB, TV, PC, MP3/MP4 those don’t have the BT function), then click the “M” key to choose the TX mode, then turn on your Bluetooth RECEIVER device, the device will automatically connect. The screen will display “TX1/TX2 connected”.
RX Mode: Using the AUX/RCA cable, one side insert to the ” AUX OUT” port or the SPDIF cable insert to the “SPDIF OUT” port, the other side insert to the Bluetooth device, then click the “M” key to choose the RX mode, Then turn on the phone BT setting and search for BT device (BT20/TX800) to select and pair connections. The screen will display “RX1/RX2 connected”.
APP CONTROL
Packaged:

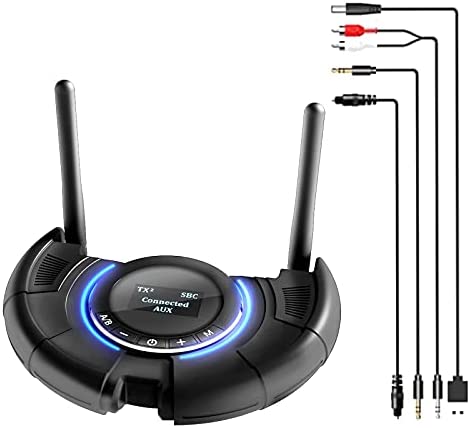

1x CSR8675 Bluetooth Adapter
1x OPTICAL Cable
1x RCA Cable
1x 3.5mm Aux Cable
1x Type-c Charger Cable
1x Usage
【3 in1 Mode】Receiving mode: Bluetooth enable your TV to stream audio to your Bluetooth headphones or speaker; Transmitting mode: mobile phones and tablets, etc, play music in a wireless form through Bluetooth transmitters; Bypass mode (wired): Cable connection between your TV and soundbar.
【Wider Connection Range】Longer range means stronger connection, audio won’t cut in / out easily. TX800 long range Bluetooth adapter tested can achieve a range up to 300ft (100m) line-of-sight in open air and up to 80-110ft (25-35m) indoors. NOTE: Operation range can be affected by Wi-Fi routers, Wireless TV adapters, physical obstructions like walls, metal obstacles etc. and also depended on receiving device.
【APP Control and Visual Screen】Support APP control, all functions can be easily controlled by APP, OLED screen displays all operating status, low power consumption, working status is clear at a glance, cool breathing light heat dissipation.
【No Lip Sync Delay】MAptX Low Latency technology eliminate Bluetooth audio delay, Long Range adapter TX800 supports dual link Simultaneously, Pair with two Bluetooth headphones or two Bluetooth speakers & BOTH enjoy ultra-fast audio streaming.To achieve low latency ( <40ms delay>【Double connection】Support one transmitter to connect two Bluetooth speakers or earphones at the same time, and use one CODEC at the same time.In TX mode, two Bluetooth headsets can be paired at the same time, so you can enjoy your own world and offer the children a rest time. In RX mode, two smart devices can be paired to play different songs. The Bluetooth adapter can hold 8 devices and automatically reconnect to existing devices.
