Price: $14.99
(as of Aug 19, 2022 12:38:43 UTC – Details)
Product Description
Brand new fan with excellent quality .Easily installed and exhaust the hot air from inside the case. Increase air flow in your system.Cooling down the entire case. Extend your system life EC fans come with the Hydraulic ，super long life EC fans could be connected directly to an AC mains supply.（AC 110v 115v 120v 220v 240v） The electronics convert AC to DC and control the fan speed by regulating the power to the motor. EC motors are around 30% more efficient than AC motors, because the secondary magnetic field comes from permanent magnets rather than copper windings. Parameters: Dimensions: 120mm(L)×120mm(W)×25mm(H) Mountings Hole:105.0±0.3mm Connector: 2 wire (without connector) Rated Voltage: AC 110V-240V Bearing Type: Dual Ball Rated Speed: 2600RPM±10% Noise Level: 38dBA±10% Air Flow: 100.2CFM±10% Cable Length: 20cm Life: 50000Hours Weight: 70g/pcs Power:7.0W
SXDOOL COOLING
SXDOOL EC Axial fan is high efficiency brushless DC motors which is driven directly from an AC power supply. Power consumption is reduced by approximately 60-80% compared with our conventional AC fans and shade pole motors.
Reliable Supplier Cooling Fan Manufacturer

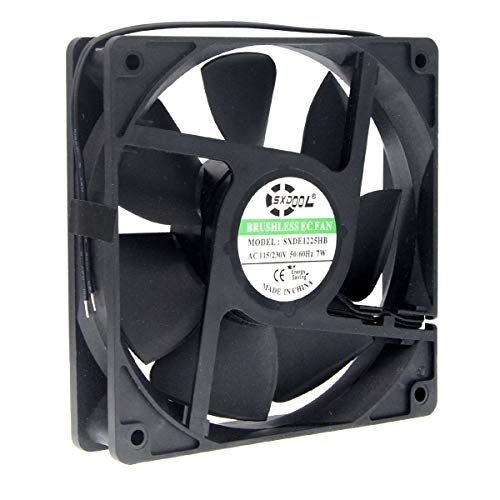

120mm 120V 240V Computer Cooling Fan
Energy Saving Design
EC is Electronically Commutated, inpute voltage is AC 115V 120V 220V,but the motor runs on the DC Voltageif speed is slightly increased or decreased, output and energy usage will remain relatively linear. A similar AC fan in that environment would either drastically drop airflow output or drastically increase energy usage.EC motors can also have windings made in both directions that would allow the reversal of polarity to reverse blade spin direction; this is a feature that not all EC have.
Energy Saving Higher Airflow than Normal AC Fan Simple connection
7 Blade Impeller Design
This Special Design can increase the air flow but reduce the noise level
Energy Saving
Reduced 60-80% energy Compared with the normal AC Cooling Fan
Bearing Type
High precision dual ball bearing, long service life and stable operation of fan,Dual-ball bearings have a lifespan of 50,000 hours
Fan and Accessories
Included 1pcs 120mm EC Fan,2pcs 120mm Fan Grill, 1pcs CH-2 Connector
Date First Available : July 5, 2020
Manufacturer : SXDOOL
ASIN : B08CCYNM75
Country of Origin : China
❶ Wide Voltage Range:90-270V AC
❷ High Air Flow&Rotation,But Low Power Consumption
❸ 120X120X25mm | 90-270V AC | 7W | 2800RPM | 100.2CFM | 38dBA | 2-wire Lead
❹ Dual-ball bearings have a lifespan of 50,000 hours and allows the fans to be laid flat or stand upright.
❺ Package include: 1Pcs Fan | 2pcs Grill | 4pcs Mounting Screws & Nuts
