Price: $645.00 - $612.75
(as of Oct 05, 2022 12:50:00 UTC – Details)

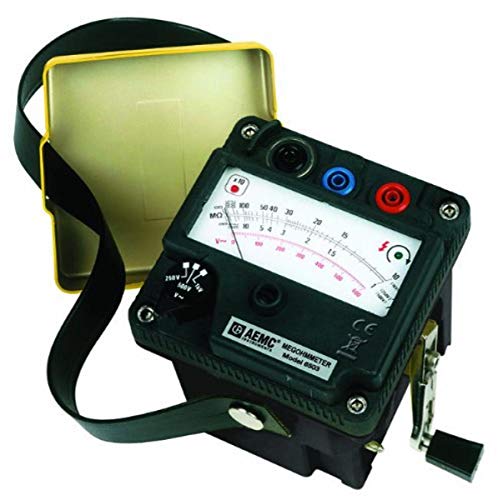

The Megohmmeter Model is a compact, self-contained, hand-cranked True Megohmmeter. This practical and dependable instrument is designed for a broad range of plant and field service applications, such as acceptance testing and preventive maintenance of wiring, cables, switchgear and motors. The easy hand-cranked operation provides a steady, DC voltage output across the entire range for consistently reliable readings. The Model 6503 has three test voltages for insulation resistance testing: 250V, 500V and 1000V. Test voltages are generated in full across the entire measurement range. Compact self-contained package; folded crank. Large direct reading scale. Acceptance testing and preventive maintenance. Test motors, cables, switchgears and electrical wiring installations. Continuity checks. Check domestic and industrial wiring. Insulation tests: test voltage (250V, 500V, 1000V): 1 to 11 Mohm; 11 to 500 Mohm, 1 to 11 Mohm; 11 to 500 Mohm, 10 to 110 Mohm; 110 to 5000 Mohm; Short circuit current: 5mA (max); accuracy: 2.5 percent of scale length; automatic discharge: 8 s/micro F; charging time (250V, 500V, 1000V): 0.2 s/, 0.5 s/, 0.5 s/. Resistance tests discharging time (auto): 8 s/. Voltage tests/safety check: voltage range: 0 to 600Vac, frequency: 45 to 450Hz, accuracy: 3 percent of full scale length. Black case, lid painted safety-yellow, with heavy duty gray polycarbonate front panel; O-ring sealed against water and dust; folding crank. Degree of protection: IP54 with cover and IP52 without (IEC 60529 Ed. 92). Domaine of reference: 23 degree C +/- 3 degree C. Terminals: guard “+” line (red); “–” earth (black); accepts standard 4mm banana plugs. EN 61010-1, 300V CAT III; 600V CAT II, Pollution Degree 2. Double Insulation. CE Mark; EN 61326-1: 2006. Measures with lid 4-89/128″ width by 5-19/64″ height by 4-51/128″ depth.
Product Dimensions : 11.1 x 6.9 x 6.5 inches; 4.59 Pounds
Item model number : 6503
Date First Available : December 9, 2010
Manufacturer : AEMC
ASIN : B008S0BGLG
Country of Origin : USA
